Chapter 11 Spatial and Temporal Data Management

Nothing puzzles me more than time and space; and yet nothing troubles me less, as I never think about them.

Charles Lamb, 1810.

Learning objectives

Students completing this chapter will

  • be able to define and use a spatial database;

  • be familiar with the issues surrounding the management of temporal data.

Spatial data

The introduction of ubiquitous networks and smartphones has led to the advent of location-based services. Customers expect information delivered based on, among other things, where they are. For example, a person touring the historic German city of Regensburg could receive information about its buildings and parks via their mobile phone in the language of choice. Their smartphone will determine their location and then select from a database details of the immediate environment. Data managers need to know how to manage the spatial data necessary to support location-based services.

Some aspect of time is an important fact to remember for many applications. Banks, for example, want to remember what dates customers made payments on their loans. Airlines need to recall for the current and future days who will occupy seats on each flight. Thus, the management of time-varying, or temporal, data is availed when a database management system has built-in temporal support. As a result, there has been extensive research on temporal data models and RDBMSs for more than a decade. The management of temporal data is another skill required of today’s data management specialist.

The Open Geospatial Consortium, Inc. (OGC) is a nonprofit international organization developing standards for geospatial and location-based services. Its goal is to create open and extensible software application programming interfaces for geographic information systems (GIS) and other geospatial technologies. RDBMS vendors (e.g., MySQL) have implemented some of OGC’s recommendations for adding spatial features to SQL. MySQL is gradually adding further GIS features as it develops its DBMS.

Managing spatial data

A spatial database is a data management system for the collection, storage, manipulation, and output of spatially referenced information. Also known as a geographic information system (GIS), it is an extended form of RDBMS. Geospatial modeling is based on three key concepts: theme, geographic object, and map.

A theme refers to data describing a particular topic (e.g., scenic lookouts, rivers, cities) and is the spatial counterpart of an entity. When a theme is presented on a screen or paper, it is commonly seen in conjunction with a map. Color may be used to indicate different themes (e.g., blue for rivers and black for roads). A map will usually have a scale, legend, and possibly some explanatory text.

A geographic object is an instance of a theme (e.g., a river). Like an instance of an entity, it has a set of attributes. In addition, it has spatial components that can describe both geometry and topology. Geometry refers to the location-based data, such as shape and length, and topology refers to spatial relationships among objects, such as adjacency. Management of spatial data requires some additional data types to represent a point, line, and region.

Generic spatial data types

Data type Dimensions Example
Point 0 Scenic lookout
Line 1 River
Region 2 County

Consider the case where we want to create a database to store some details of political units. A political unit can have many boundaries. The United States, for example, has a boundary for the continental portion, one for Alaska, one for Hawaii, and many more to include places such as American Samoa. In its computer form, a boundary is represented by an ordered set of line segments (a path).

Data model for political units

SQL/MM Spatial

SQL/MM, also known as ISO 13249, is an extension of SQL to handle spatial data. It uses the prefix ST_ for tables, views, data types, and function names. Originally, this prefix meant Spatial and Temporal, because the intention was to develop a standard that combined spatial and temporal extensions to SQL. However, it was realized that temporal required a broader perspective and should be separate standard. Thus, think of ST_ as meaning Spatial Type.

MySQL has data types for storing geometric data, which are:

Type :============== Point Representation | Description | :==============================================+:======================================================================================================================+ POINT(x y) | A point in space (e.g., a city’s location) |
LineString LINESTRING(x1 y1,x2 y2,…) A sequence of points with linear interpolation between points (e.g., a road)
Polygon POLYGON((x1 y1,x2 y2,…), (x1 y1,x2 y2,…)) A polygon (e.g., a boundary) which has a single exterior boundary and zero or more interior boundaries ( i.e., no holes)

Spatial Reference Support System (SRS)

A spatial reference system (SRS) is facilitates the location of geometric objects using coordinates. A specific SRS is identified by an SRID, which is an integer

There are three types of reference systems:

Projected

A projected SRS is a projection of a globe on a flat surface. Map makers have developed a variety of approaches, such as Mecator, to represent a portion of the earth on a page or screen. Each point on the flat surface is a place on the globe. A projected SRS typically shows a length legend, such as the distance in miles or kilometers.

Geographic

For a geographic SRS, the coordinates are latitude and longitude. The SRID is 4326. 26

Cartesian

A Cartesian SRS, is an infinite flat plane with no specified units. The SRID is O, and this is the default if you don’t specify an SRS.

Data model mapping

The data model in the preceding figure is mapped to MySQL. By specifying a SRID of 0, Ireland is represented in the following map using a Cartesian SRS. Since Ireland is small relative the size of the earth, this is a reasonable approximation.

In the following definition of the database’s tables, note two things. The boundpath column of boundary is defined with a data type of POLYGON and SRID of 0. The cityloc column of city is defined as a POINT. Otherwise, there is little new in the set of statements to create the tables.

Political unit database definition

CREATE TABLE political_unit (
    Unitname    VARCHAR(30) NOT NULL,
    Unitcode    CHAR(2),
    Unitpop   DECIMAL(6,2),
      PRIMARY KEY(unitcode));
CREATE TABLE boundary (
    Boundid   INTEGER,
    Boundpath   POLYGON NOT NULL SRID 0,
    Unitcode    CHAR(2),
      PRIMARY KEY(boundid),
      CONSTRAINT fk_boundary_polunit FOREIGN KEY(unitcode)
        REFERENCES political_unit(unitcode));
CREATE TABLE city (
    Cityname    VARCHAR(30),
    Cityloc   POINT NOT NULL SRID 0,
    Unitcode    CHAR(2),
      PRIMARY KEY(unitcode,cityname),
      CONSTRAINT fk_city_polunit FOREIGN KEY(unitcode)
        REFERENCES political_unit(unitcode));

We now use the geographic entity of Ireland to demonstrate the application of spatial concepts. The island has two political units. The Republic of Ireland (Eire) governs the south, while Northern Ireland, a part of the United Kingdom, is in the north.

Map of Ireland

To represent these two political units within a spatial database, we need to define their boundaries. Typically, this is done by approximating the boundary by a single exterior polygon. In the preceding figure, you see a very coarse representation based on connecting intersection points of the overlay grid. The SRID needs to be specified for each geometric object, as for example where it is set to 0 when specifying Dublin’s coordinates, ST_GeomFROMText('POINT(9 6)', 0).

Insert statements for populating database

INSERT INTO political_unit VALUES ('Republic of Ireland','ie', 3.9);
INSERT INTO political_unit VALUES ('Northern Ireland','ni', 1.7);
INSERT INTO boundary VALUES
    (1,ST_GeomFROMText('POLYGON((9 8, 9 3, 4 1, 2 2, 1 3, 3 5, 3 6, 2 6,
     2 9, 5 9, 5 10, 6 11, 7 11, 7 10, 6 9, 7 8, 7 9, 8 9, 8 8, 9 8))', 0),'ie');
INSERT INTO boundary VALUES
    (2,ST_GeomFROMText('POLYGON((7 11, 9 11, 10 9, 10 8, 8 8, 8 9, 7 9,
     7 8, 6 9, 7 10, 7 11))', 0),'ni');
INSERT INTO city VALUES ('Dublin',ST_GeomFROMText('POINT(9 6)', 0),'ie');
INSERT INTO city VALUES ('Cork',ST_GeomFROMText('POINT(5 2)', 0),'ie');
INSERT INTO city VALUES ('Limerick',ST_GeomFROMText('POINT(4 4)', 0),'ie');
INSERT INTO city VALUES ('Galway',ST_GeomFROMText('POINT(4 6)', 0),'ie');
INSERT INTO city VALUES ('Sligo',ST_GeomFROMText('POINT(5 8)', 0),'ie');
INSERT INTO city VALUES ('Tipperary',ST_GeomFROMText('POINT(5 3)', 0),'ie');
INSERT INTO city VALUES ('Belfast',ST_GeomFROMText('POINT(9 9)', 0),'ni');
INSERT INTO city VALUES ('Londonderry',ST_GeomFROMText('POINT(7 10)', 0),'ni');

The two sets of values for the column boundary define the boundaries of the Republic of Ireland and Northern Ireland. Because of the coarseness of this sample mapping, the Republic of Ireland has only one boundary. A finer-grained mapping would have multiple boundaries, such as one to include the Arran Islands off the west coast near Galway. Each city’s location is defined by a point or pair of coordinates. ST_GeomFromText is an MySQL function to convert text into a geometry data form.

Workbench can show you the boundaries for you spatial database. See the following screenshot.

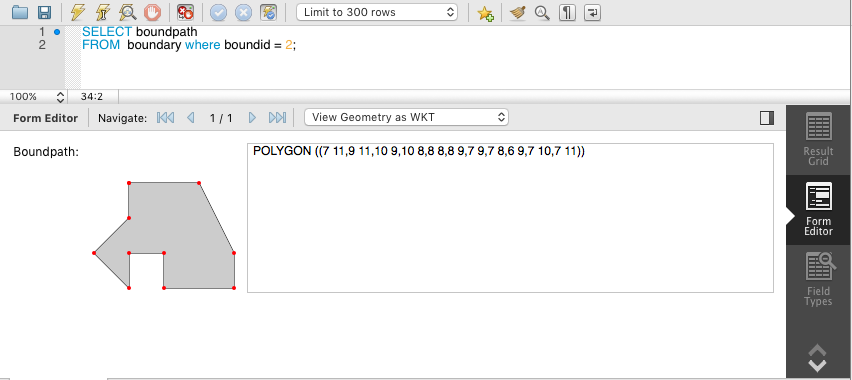

Boundary path as displayed by Workbench

Skill builder

Create the three tables for the example and insert the rows listed in the preceding SQL code.

MySQL includes a number of geometry functions and operators for processing spatial data that simplify the writing of queries. A column’s SRID value determines the method of calculating area or distance. Euclidean geometry is use for a flat plane (SRID = 0), and spherical geometry for latitude and longitude measures (SRID = 4326). For illustrative purposes, just a few of the geometric functions are described.

Some MySQL geometric functions

Function Description
ST_X(Point) The x-coordinate of a point
ST_Y(Point) The y-coordinate of a point
ST_Distance(Point, Point) The distance between two points
ST_NumPoints(LineString) The number of points in a linestring
ST_Area(Polygon) The area of a polygon

Once the database is established, we can do some queries to gain an understanding of the additional capability provided by the spatial additions. Before starting, examine the scale on the map and note that one grid unit is about 37.5 kilometers (23 miles). This also means that the area of one grid unit is 1406 km (526 square miles).

What is the area of the Republic of Ireland?

Because we approximate the border by a polygon, we use the area function and multiply the result by 1406 to convert to square kilometers.

SELECT ST_AREA(boundpath)*1406
  AS 'Area (km^2)' FROM political_unit JOIN boundary
    ON political_unit.unitcode = boundary.unitcode
      WHERE unitname = 'Republic of Ireland';
Table 11.1: 1 records
Area (km^2)
71706

How far, as the crow flies, is it from Sligo to Dublin?

You can measure the distance between two points using ST_Distance. You will need to multiply the result by 37.5 or 23 to convert to kilometers or miles, respectively.

WITH
  orig AS (SELECT * FROM city),
  dest AS (SELECT * FROM city)
SELECT ST_Distance(orig.cityloc,dest.cityloc)*37.5  AS "Distance (kms)"
    FROM orig, dest
     WHERE orig.cityname = 'Sligo'
     AND dest.cityname = 'Dublin';
Table 11.2: 1 records
Distance (kms)
167.7051

What is the closest city to Limerick?

This query has a familiar structure. The inner query determines the minimum distance between Limerick and other cities. Notice that there is a need to exclude comparing the distance from Limerick to itself, which is zero.

WITH
  orig AS (SELECT * FROM city),
  dest AS (SELECT * FROM city)
SELECT dest.cityname FROM orig, dest
WHERE orig.cityname = 'Limerick'
AND ST_Distance(orig.cityloc,dest.cityloc)=
    (SELECT MIN(ST_Distance(orig.cityloc,dest.cityloc))
    FROM city orig, city dest
    WHERE orig.cityname = 'Limerick' AND dest.cityname <> 'Limerick');
Table 11.3: 1 records
Cityname
Tipperary

What is the westernmost city in Ireland?

The first thing to recognize is that by convention west is shown on the left side of the map, which means the westernmost city will have the smallest x-coordinate.

WITH
  west AS (SELECT * FROM city),
  other AS (SELECT * FROM city)
SELECT west.cityname FROM  west
WHERE NOT EXISTS
    (SELECT * FROM  other WHERE ST_X(other.cityloc) < ST_X(west.cityloc));
Table 11.4: 2 records
Cityname
Galway
Limerick

Skill builder

  1. What is the area of Northern Ireland? Because Northern Ireland is part of the United Kingdom and miles are still often used to measure distances, report the area in square miles.

  2. What is the direct distance from Belfast to Londonderry in miles?

  3. What is the northernmost city of the Republic of Ireland?

Geometry collections

A geometry collection is a data type for describing one or more geometries. It covers multiple points, strings, polygons, as well as their possible combinations.

MultiPoint

The multipoint data type records information about a set of points, such as the bus stops on campus. For example:

MULTIPOINT(9.0 6.1, 8.9 6.0)

MultiLineString

The MultiLineString data type records information about a set of line strings, such as the bus routes on campus. For example:

MULTILINESTRING((9 6, 4 6), (9 6, 5 2))

MULTIPOLYGON

The MultiPOLYGON data type records information about a set of polygons, such as the shapes of the buildings on campus. For example:

MULTIPOLYGON(((0 0,10 0,10 10,0 10,0 0)),((5 5,7 5,7 7,5 7, 5 5)))

GEOMETRYCOLLECTION

The GEOMETRYCOLLECTION data type records information about a collection of geometries, such as the bus routes and stops on campus. For example:

GEOMETRYCOLLECTION(LINESTRING(15 15, 20 20), POINT(10 10), POINT(30 30))

You can insert data using ST_GeomCollFromText, as the following example illustrates:

INSERT INTO table VALUES
ST_GeomCollFromText('GEOMETRYCOLLECTION(POINT(1 1),LINESTRING(0 0,1 1,2 2,3 3,4 4))');

Skill builder

Modify the example database design to include:

  1. Historic buildings in a city

  2. Walking paths in a city

  3. Use of the MULTIPOLYGON data type to indicate a political region’s boundary

Geocoding using Google Maps

To get the latitude and longitude of a location, you can use Google Maps by following this procedure.

  1. Go to maps.google.com.

  2. Enter your address, zip code, airport code, or whatever you wish to geocode.

  3. Click on the link that says ‘link to this page.’ It is on the right side, just above the upper right corner of the map.

  4. The address bar (URL) will change. Examine the full link. For example: https://www.google.com/maps/place/Athens-Ben+Epps+Airport+-+AHN/@33.9519038,-83.3273184,17z/data=!3m1!4b1!4m5!3m4!1s0x88f66b676ce4ce85:0x749d5ade6813b384!8m2!3d33.9519038!4d-83.3251297.

  5. The latitude and longitude are contained in the URL following AHN/@. In this case, latitude is: 33.9519038 and longitude: –83.3273184.

R-tree

Conventional RDBMSs were developed to handle one-dimensional data (numbers and text strings). In a spatial database, points, lines, and rectangles may be used to represent the location of retail outlets, roads, utilities, and land parcels. Such data objects are represented by sets of x, y or x, y, z coordinates. Other applications requiring the storage of spatial data include computer-aided design (CAD), robotics, and computer vision.

The B-tree, often used to store data in one-dimensional databases, can be extended to n dimensions, where n ≥ 2. This extension of the B-tree is called an R-tree. As well as storing pointers to records in the sequence set, an R-tree also stores boundary data for each object. For a two-dimensional application, the boundary data are the x and y coordinates of the lower left and upper-right corners of the minimum bounding rectangle, the smallest possible rectangle enclosing the object. The index set, which contains pointers to lower-level nodes as in a B-tree, also contains data for the minimum bounding rectangle enclosing the objects referenced in the node. The data in an R-tree permit answers to such problems as Find all pizza stores within 5 miles of the dorm.

How an R-tree stores data is illustrated in the following figure, which depicts five two-dimensional objects labeled A, B, C, D, and E. Each object is represented by its minimum bounding rectangle (the objects could be some other form, such as a circle). Data about these objects are stored in the sequence set. The index set contains details of two intermediate rectangles: X and Y. X fully encloses A, B, and C. Y fully encloses D and E.

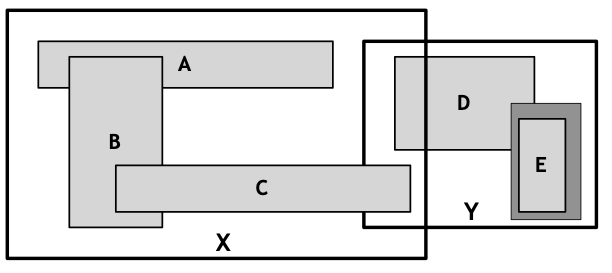

An R-tree with sample spatial data

An example demonstrates how these data are used to accelerate searching. Using a mouse, a person could outline a region on a map displayed on a screen. The minimum bounding rectangle for this region would then be determined and the coordinates used to locate geographic objects falling within the minimum boundary. Because an R-tree is an index, geographic objects falling within a region can be found rapidly. In the following figure, the drawn region (it shaded) completely covers object E. The R-tree software would determine that the required object falls within intermediate region Y, and thus takes the middle node at the next level of the R-tree. Then, by examining coordinates in this node, it would determine that E is the required object.

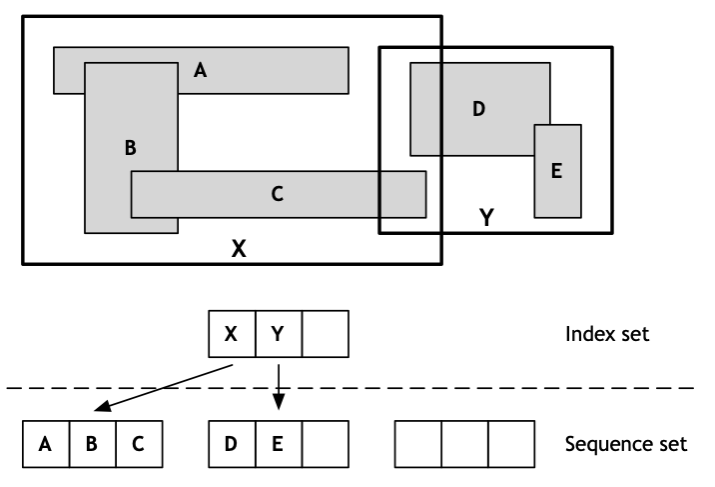

Searching an R-tree

As the preceding example illustrates, an R-tree has the same index structure as a B-tree. An R-tree stores data about n-dimensional objects in each node, whereas a B-tree stores data about a one-dimensional data type in each node. Both also store pointers to the next node in the tree (the index set) or the record (the sequence set).

This short introduction to spatial data has given you some idea of how the relational model can be extended to support geometric information. Most of the major RDBMS vendors support management of spatial data.

Managing temporal data

With a temporal database, stored data have an associated time period indicating when the item was valid or stored in the database. By attaching a timestamp to data, it becomes possible to store and identify different database states and support queries comparing these states. Thus, you might be able to determine the number of seats booked on a flight by 3 p.m. on January 21, 2011, and compare that to the number booked by 3 p.m. on January 22, 2011.

To appreciate the value of a temporal database, you need to know the difference between transaction and valid time and that bitemporal data combines both valid and transaction time.

  • Transaction time is the timestamp applied by the system when data are entered and cannot be changed by an application. It can be applied to a particular item or row. For example, when changing the price of a product, one approach might be to update the existing product row with the new price. The old price would be lost unless it was stored explicitly. In contrast, with a temporal database, the old and new prices would automatically have separate timestamps. In effect, an additional row is inserted to store the new price and the time when the insert occurred. In a database, immmutable data cannot be (or shouldn’t be) deleted or modified. Most traditional databases store data in a mutable format, meaning the database overwrites the older data when new data is available.

  • Valid time is the actual time at which an item was or will be a valid or true value. Consider the case where a firm plans to increase its prices on a specified date. It might post new prices some time before their effective date. Valid time can be changed by an application.

  • Bitemporal data records both the valid time and transaction time for a fact. It usually requires four extra columns to record the upper and lower bounds for valid time and transaction time.

Valid time records when the change will take effect, and transaction time records when the change was entered. Storing transaction time is essential for database recovery because the DMBS can roll back the database to a previous state. Valid time provides a historical record of the state of the database. Both forms of time are necessary for a temporal database.

As you might expect, a temporal database will be somewhat larger than a traditional database because data are immmutable or never discarded, and new timestamped values are inserted so that there is a complete history of the values of an instance (e.g., the price of a product since it was first entered in the database). Thus, you can think of most of the databases we have dealt with previously as snapshots of a particular state of the database, whereas a temporal database is a record of all states of the database. As disk storage becomes increasingly cheaper and firms recognize the value of business intelligence, we are likely to see more attention paid to temporal database technology.

Times remembered

SQL supports several different data types for storing numeric values (e.g., integer and float), and a temporal database also needs a variety of data types for storing time values. The first level of distinction is to determine whether the time value is anchored or unanchored. Anchored time has a defined starting point (e.g., October 15, 1582), and unanchored time is a block of time with no specified start (e.g., 45 minutes).

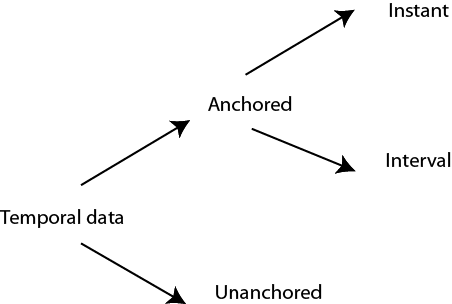

Types of temporal data27

Anchored time is further split into an instant or interval. An instant is a moment in time (e.g., a date and time). In SQL, an instant can be represented by a date, time, or timestamp data type. An interval is the time between two specified instants, and can be defined as a value or a range with an upper and lower bound instant. For example, \[2011-01-01, 2011-01-23\] defines an interval in 2011 beginning January 1 and ending January 23.

Interval

SQL-99 introduced the INTERVAL data type, which has not yet been implemented in MySQL. INTERVAL is a single value expressed in some unit or units of time (e.g., 6 years, 5 days, 7 hours). A small example illustrates the use of INTERVAL for time values. Consider the rotational and orbital periods of the planets . The CREATE statement for this table is

CREATE TABLE planet (
    pltname         VARCHAR(7),
    pltday        INTERVAL,
    pltyear         INTERVAL,
    PRIMARY KEY(pltname));

Planetary data

Planet Rotational period (hours) Orbital period (hours)
Mercury 1407.51 0.24
Venus –5832.4428
Earth 23.93 1
Mars 24.62 1.88
Jupiter 9.92 11.86
Saturn 10.66 29.45
Uranus 17.24 84.02
Neptune 16.11 164.79
Pluto 153.28 247.92

To insert the values for Mercury, you would use

INSERT INTO planet VALUES ('Mercury','1407.51 hours','0.24 years');

Modeling temporal data

You already have the tools for modeling temporal values. For example, the project management data model discussed in Chapter 7 and reproduced in the following figure contains temporal data.

A project management data model

If we take the SHARE entity introduced very early in your data modeling experience, we can add temporal information to record the history of all values that are time-varying (i.e., price, quantity, dividend, and earnings). The data model to record temporal data is displayed. Firms pay dividends and report earnings only a few times per year, so we can associate a date with each value of dividend and earnings. Recording the history of trading transactions requires a timestamp, because a person can make multiple trades in a day. Every time a share is bought or sold, a new row is inserted containing both the transaction quantity and price. The number owned can be derived by using SUM.

A temporal model of SHARE

Recording the share’s price requires further consideration. If the intention is to record every change in price, then a time stamp is required as there will be multiple price changes in a day, and even in an few minutes, in busy trading. If there is less interest in the volatility of the stock and only the closing price for each day is of interest, then a date would be recorded.

You can add additional attributes to tables in a relational database to handle temporal data, but doing so does not make it a temporal database. The problem is that current relational implementations do not have built-in functions for querying time-varying data. Such queries can be difficult to specify in SQL.

A temporal database has additional features for temporal data definition, constraint specification, data manipulation, and querying. A step in this direction is the development of TSQL (Temporal Structured Query Language). Based on SQL, TSQL supports querying of temporal databases without specifying time-varying criteria. SQL:2011, the seventh revision of the SQL standard, has improved support for temporal data.

Summary

Spatial database technology stores details about items that have geometric features. It supports additional data types to describe these features, and has functions and operators to support querying. The new data types support point, line, and region values. Spatial technology is likely to develop over the next few years to support organizations offering localized information services.

Temporal database technology provides data types and functions for managing time-varying data. Transaction time and valid time are two characteristics of temporal data. Times can be anchored or unanchored and measured as an instant or as an interval.

Key terms and concepts

Anchored time R-tree
Geographic object Spatial data
Geographic information system (GIS) Temporal data
Immutable Theme
Interval Transaction time
Map Valid time
Mutable

References and additional readings

Gibson, Rich, and Schuyler Erle. 2006. Google maps hacks. Sebastopol, CA: O’Reilly.

Rigaux, P., M. O. Scholl, and A. Voisard. 2002. Spatial databases: with application to GIS, The Morgan Kaufmann series in data management systems. San Francisco: Morgan Kaufmann Publishers.

Exercises

  1. What circumstances will lead to increased use of spatial data?

  2. A national tourist bureau has asked you to design a database to record details of items of interest along a scenic road. What are some of the entities you might include? How would you model a road? Draw the data model.

  3. Using the map of the Iberian peninsula in the following figure, populate the spatial database with details of Andorra, Portugal, and Spain. Answer the following questions.

    1. What is the direct distance, or bee line, from Lisbon to Madrid?

    2. What is the farthest Spanish city from Barcelona?

    3. Imagine you get lost in Portugal and your geographic positioning system (GPS) indicates that your coordinates are (3,9). What is the nearest city?

    4. Are there any Spanish cities west of Braga?

    5. What is the area of Portugal?

    6. What is the southernmost city of Portugal?

  4. Redesign the data model for political units assuming that your relational database does not support point and polygon data types.

  5. For more precision and to meet universal standards, it would be better to use latitude and longitude to specify points and paths. You should also recognize that Earth is a globe and not flat. How would you enter latitude and longitude in MySQL?

  6. When might you use transaction time and when might you use valid time?

  7. Design a database to report basketball scores. How would you record time?

  8. A supermarket chain has asked you to record what goods customers buy during each visit. In other words, you want details of each shopping basket. It also wants to know when each purchase was made. Design the database.

  9. An online auction site wants to keep track of the bids for each item that a supplier sells. Design the database.

  10. Complete the Google maps lab exercise listed on the book’s Web site.

Iberian Peninsula


  1. epsg.io/4326↩︎

  2. Adapted from: Goralwalla, I. A., M. T. Özsu, and D. Szafron. 1998. An object-oriented framework for temporal data models. In Temporal databases: research and practice, edited by O. Etzion, S. Jajoda, and S. Sripada. Berlin: Springer-Verlag↩︎

  3. Rotates in the opposite direction to the other planets↩︎
